Simple Supported Beams

Stress and deflection formulae for simple supported beams
+ View other versions (4)

Introduction

The stress and deflection for simply supported beams under a number of loading scenarios is illustrated within this page.

The following symbols have been used throughout:
  • S is the Stress at any point
  • Z is the Section Modulus of beam cross section.
  • y is the deflection at any point.
  • W is the load on the Beam Note for uniform loads W = wl where w is the load per unit length
  • E is the Modulus of Elasticity ( Young's Modulus)
  • I is the Moment of Inertia of the cross-section about the neutral axis

Simply Supported At Both Ends With A Uniform Load.

13108/img_ss_101.jpg
+

reveal hidden layerClick here to expand this hidden section

Simply Supported At Both Ends . Load At Centre.

13108/img_ss_102.jpg
+

reveal hidden layerClick here to expand this hidden section

Simply Supported At Both Ends. Load At Any Point.

13108/img__ss_103.jpg
+

reveal hidden layerClick here to expand this hidden section

Simply Supported At Both Ends. Two Equal Loads Symmetrically Placed

13108/img_ss_104.jpg
+

reveal hidden layerClick here to expand this hidden section

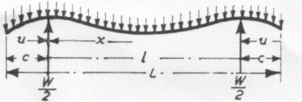

Simply Supported But With Both Ends Overhanging Symmetrically. Uniform Load.

13108/img_ss105.jpg
+

reveal hidden layerClick here to expand this hidden section

Simply Supported With Both Ends Overhanging, Supports Unsymmetrical, Uniform Load.

13108/img_ss_106.jpg
+

reveal hidden layerClick here to expand this hidden section

Simply Unsymmetrically Supported With Both Ends Overhanging And A Load At Any Point.

13108/img_ss_107.jpg
+
reveal hidden layerClick here to expand this hidden section

Simply Supported With Ends Overhanging. Single Overhanging Load.

13108/img_ss108.jpg
+
reveal hidden layerClick here to expand this hidden section
