Simple Supported Beams
Stress and deflection formulae for simple supported beams.
Contents
- Introduction
- Simply Supported At Both Ends With A Uniform Load.

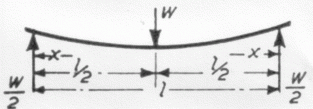

- Simply Supported At Both Ends . Load At Centre.

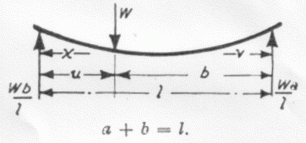

- Simply Supported At Both Ends. Load At Any Point.
- Simply Supported At Both Ends. Two Equal Loads Symmetrically Placed
- Simply Supported But With Both Ends Overhanging Symmetrically. Uniform Load.
- Simply Supported With Both Ends Overhanging, Supports Unsymmetrical, Uniform Load.
- Simply Unsymmetrically Supported With Both Ends Overhanging And A Load At Any Point.
- Simply Supported With Ends Overhanging. Single Overhanging Load.
- Page Comments
Introduction
The stress and deflection for simply supported beams under a number of loading scenarios is illustrated within this page. The following symbols have been used throughout:- S is the Stress at any point
- Z is the Section Modulus of beam cross-section.
- y is the deflection at any point.
- W is the load on the Beam Note for uniform loads W = wl, where w is the load per unit length
- E is the Modulus of Elasticity (Young's Modulus)
- I is the Moment of Inertia of the cross-section about the neutral axis
![y=\frac{Wx(l - x)}{24\,E\,I\,l}\:\;[l^2 + x(l - x)]](/images/eqns/4553c7e33a4bcf1165ccede901bdafee.gif){kind=small}
Simply Supported At Both Ends. Two Equal Loads Symmetrically Placed
Click here to expand this hidden section
![y=\frac{W\;x}{6\;E\;I}\times [3a(l - a) - x^2]](/images/eqns/55ad3cef12037f284ebc68c70ca2b482.gif){kind=small}
![y=\frac{W\;a}{6\;E\;I}\times [3v(l - v) - a^2]](/images/eqns/76cddf4cd1226f1ae1d9d781d5a94ca3.gif){kind=small}
Simply Supported But With Both Ends Overhanging Symmetrically. Uniform Load.
Click here to expand this hidden section
![S=\frac{W}{2\;Z\;L}\;(c^2 - x[l - x])](/images/eqns/d4cba04bc381f5b792b8418fd5093988.gif){kind=small}
on each side of the centre. Should the section be constant and l = 2.828 c, the stresses at the centre and at the supports are equal and opposite. They are:-
![y=\frac{W\;u}{24\;E\;I\;L}\;\times[6c^2(l + u)\;'- u^2(4c - u) - l^3]](/images/eqns/b844e36aa64de8ec3b0fc4a8880028f3.gif){kind=small}
![y=\frac{W\;x(l - x)}{24\;E\;I\;L}\;\times[x(l - x) + l^2 - 6c^2]](/images/eqns/f32b7148104dd5a445835d58946927f6.gif){kind=small}
![y_e=\frac{W\;x}{24\;E\;I\;L}\;\times[3\,c^2(c + 2l) - l^3]](/images/eqns/1854adf8b965aacb91c743621c470e95.gif){kind=small}
![y_c=\frac{W\;l^2}{384\;E\;I\;L}\;\times[5\;l^2 - 24\,c^2]](/images/eqns/c08763de41b3937af8765d686bd4ee8a.gif){kind=small}
on each side of the centre. The value of these are :-
Simply Supported With Both Ends Overhanging, Supports Unsymmetrical, Uniform Load.
Click here to expand this hidden section
the stress is zero at points
on both sides of
The deflection for the overhanging length c:-
![y = \frac{Wu}{24\;E\,I\,L}\;\;[2l(d^2 + 2c^2) + 6c^2u - u^2(4c - u) - l^3]](/images/eqns/209823c7923f9c5a51581a2351ec3713.gif){kind=small}
![y = \frac{Wx(l - x)}{24\;E\,I\,L}\;\left\{x(l - x) + l^2 - 2(d^2 + c^2) - \frac{2}{l}\;[d^2x + c^2(l - x)] \right\}](/images/eqns/7addd1e75bbc1d32afe19b71547ddd1d.gif){kind=small}
![y = \frac{Ww}{24\;E\,I\,L}\;\;[2l(c^2 + 2d^2) + 6d^2w - w^2(4d - w) - l^3]](/images/eqns/75df52be6d0fd9ab1ea4f5461134175d.gif){kind=small}
![y=\frac{Wc}{24\;E\,I\,L}\;[2l(d^2 + 2c^2) + 3c^3 - l^3]](/images/eqns/b77fcd7a59d78306b2bd3767ebce96b9.gif){kind=small}
![y=\frac{Wd}{24\;E\,I\,L}\;[2l(c^2 + 2d^2) + 3d^3 - l^3]](/images/eqns/d3942796147407b341bbdd7c22d63ed3.gif){kind=small}
Simply Unsymmetrically Supported With Both Ends Overhanging And A Load At Any Point.
Click here to expand this hidden section
Simply Supported With Ends Overhanging. Single Overhanging Load.
Click here to expand this hidden section
