Thermodynamic Cycles

An introduction to thermodynamic cycles, also discussing the Carnot cycle
+ View other versions (4)

Overview

Key facts The thermal efficiency of any engine working between the temperatures of T1 and T2 is:

\eta_{th} \leq 1 - \frac{T_1}{T_2}

with the equality being satisfied only for the Carnot efficiency. Therefore, the Carnot cycle is the cycle with the highest possible thermal efficiency, while in order to increase the efficiency of all the other engines the (T2-T1) value should be increased.

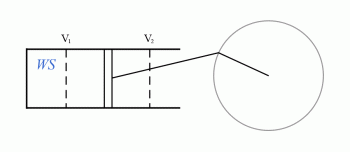

The thermodynamic cycle consists of a series of operations (e.g. expansion/compression of a volume - see Figure 1) carried out on a gas or steam (which is often called a working substance, WS), after which it returns to its original state.

MISSING IMAGE!

746/img_ther1.png cannot be found in /users/746/img_ther1.png. Please contact the submission author.

For example, imagine that initially there is an expansion of volume from V1 to V2, corresponding to a work output of W1. Figure 2 shows such a process with a pressure (P) - volume (V) plot, where the work output (W1) equals the area under curve A 9 (shaded blue).

MISSING IMAGE!

746/img_ther2-2.png cannot be found in /users/746/img_ther2-2.png. Please contact the submission author.

Next the gas is compressed back to its original volume, i.e. V2 back to V1, which requires a work input of W2 (the shaded area under the curve in Figure 3).

MISSING IMAGE!

746/img_ther3-2.png cannot be found in /users/746/img_ther3-2.png. Please contact the submission author.

When we combine the two processes on a single \inline PV plot, we get a closed loop (see Figure 4A). This closed loop corresponds to a thermodynamic cycle.

MISSING IMAGE!

746/img_ther4-1.png cannot be found in /users/746/img_ther4-1.png. Please contact the submission author.

As the net work output \inline W is given by:

it will thus equal the area of the cycle (the blue shaded area in Figure 4B).

MISSING IMAGE!

746/img_ther4-2.png cannot be found in /users/746/img_ther4-2.png. Please contact the submission author.

Such thermodynamic cycles can also be represented on temperature (\inline T) - entropy (\inline S) diagrams. For example, imagine that initially there is a certain amount of heat supplied (\inline Q_S) to the WS, leading to an increase in entropy. If we are to illustrate such a process on a \inline TS plot (see Figure 5A), then the heat energy supplied \inline Q_S will equal the area under curve \inline A (the blue shaded area in Figure 5B).

MISSING IMAGE!

746/img_ther5-1.png cannot be found in /users/746/img_ther5-1.png. Please contact the submission author.

MISSING IMAGE!

746/img_ther5-2.png cannot be found in /users/746/img_ther5-2.png. Please contact the submission author.

Next, consider that there is a certain amount of heat rejected in the WS and in losses (\inline Q_R), reverting the system back to its initial state. By plotting this process on a \inline TS diagram (see Figure 6A), the heat rejected \inline Q_R will equal the area under curve \inline B (the blue shaded area in Figure 6B).

MISSING IMAGE!

746/img_ther6-1.png cannot be found in /users/746/img_ther6-1.png. Please contact the submission author.

MISSING IMAGE!

746/img_ther6-2.png cannot be found in /users/746/img_ther6-2.png. Please contact the submission author.

If we are to illustrate both processes on a single \inline TS plot, then we will get again a closed loop, corresponding to the thermodynamic cycle (see Figure 7A)

MISSING IMAGE!

746/img_ther7-1.png cannot be found in /users/746/img_ther7-1.png. Please contact the submission author.

By denoting the energy of the WS at the start of the cycle with \inline E_i, and the energy of the WS at the end of the cycle with \inline E_f, and by applying the law of conservation of energy, we can write that:

where \inline W is the work output (for a more detailed discussion on the law of conservation of energy see First Law of Thermodynamics ).

However, as \inline E_i = E_f (the system is reverted back to its initial state), equation (3) becomes:

from which:

Therefore, when plotting the thermodynamic cycle on a \inline TS diagram (as in Figure 7A), the work output will again equal the area of the cycle (the blue shaded area in Figure 7B).

MISSING IMAGE!

746/img_ther7-2.png cannot be found in /users/746/img_ther7-2.png. Please contact the submission author.

It is important to note that, although the work done can be calculated from the area of the thermodynamic cycle for both a \inline PV and a \inline TS plot, the results obtained are expressed in different units. For example, if calculating in imperial units, the area of the cycle on the \inline PV diagram gives the work done in \inline ft-lb, while the area of the cycle on the \inline TS diagram gives the work done in \inline BTU.
