Air Compressors

Examines the application of the gas laws to Air Compressors and Motors

View other versions (2)

Contents

Introduction
Work Done In An Isothermal Compression
Work Done In An Adiabatic Compression
Alternative Forms Of The Work Done Expression.
A Comparison Of The Work Done With Different Indices Of Compression.
The Overall Isothermal Efficiency Of The Plant:-
The Cooling Of Compressors.
Page Comments

Introduction

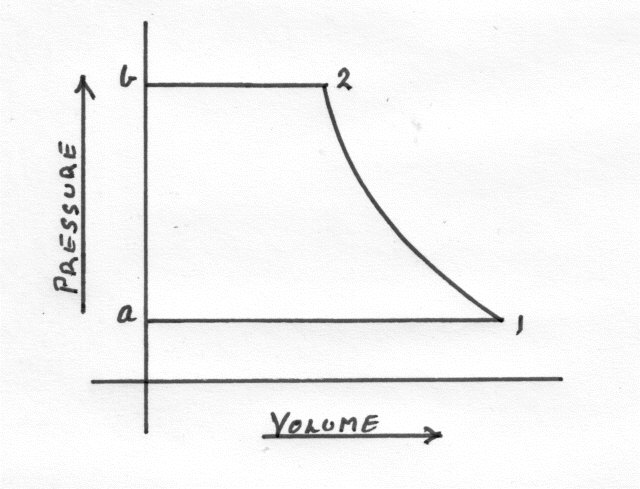

Single Stage Reciprocating without Clearance:

Stage a - 1

Suction Stroke. The inlet valve opens and the cylinder fills with air at Ambient Pressure.

$\text{Work done}=P\;dV=P_1V_1$

(1)

Stage 1 - b

Compression Stroke. Both Valves are shut. The Pressure is raised from to

Stage 2 - b

Delivery Stage. The Exhaust Valve opens. Air at is delivered to the receiver at Constant Pressure.

$\text{Work done}=P_2V_2$

(2)

The Work Done during compression = $\displaystyle\frac{P_2V_2-P_1V_1}{n-1}$

The Work Done in the Compressor = $\displaystyle \frac{n}{n-1}\;(P_2V_2-P_1V_1)$

$=\frac{n}{n-1}\left(P_2V_2\;-\;P_1V_1 \right)$

(3)

$\therefore\;\;\;\;\;\;\;\text{Net Work Done}=P_1V_1-P_2V_2+\frac{P_2V_2-P_1V_1}{n-1}$

(4)

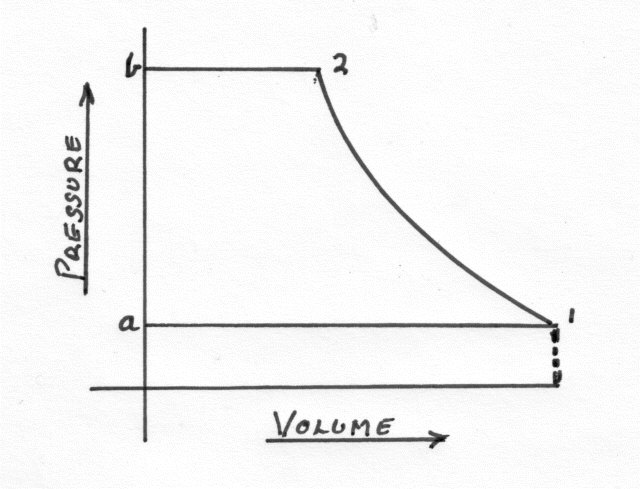

Work Done In An Isothermal Compression

Work Done on Air

$=P_2V_2+P_1V_1\;Ln \frac{V_1}{V_2}-P_1V_1$

(5)

But

(6)

$\therefore\;\;\;\;\;\text{Work Done}=P_1V_1\;Ln\frac{V_1}{V_2}$

(7)

$P_1V_1\;Ln\frac{P_2}{P_1}$

(8)

Work Done In An Adiabatic Compression

$\text{Work Done}=\frac{\gamma }{\gamma -1}\left(P_2V_2-P_1V_1 \right)$

(9)

$=\frac{\gamma }{\gamma -1}\;wR\;\left(T_2-T_1 \right)$

(10)

$=w\;C_P\left(T_2-T_1 \right)=\text{The Increase in Enthalpy}$

(11)

Alternative Forms Of The Work Done Expression.

The Work Done is given by the following Expressions:

$\frac{n}{n-1}\left(P_2V_2-P_1V_1 \right)$

(12)

$\frac{n}{n-1}\;wR\left(T_2-T_1 \right)N$

(13)

where N is the number of Cycles per Min

$\frac{n}{n-1}\;WR\left(T_2-T_1 \right)$

(14)

where W is the weight Handled per Min.

$\frac{n}{n-1}\;wRT_1\left(\frac{T_2}{T_1}-1\right)$

(15)

$\frac{n}{n-1}\;wRT_1\left[\left(\frac{P_2}{P_1} \right)^{\frac{n-1}{n}}-1 \right]$

(16)

A Comparison Of The Work Done With Different Indices Of Compression.

(17)

$V_2=V_1\left(\frac{P_1}{P_2} \right)^{\frac{1}{n}}$

(18)

$\therefore\;\;\;\;\;V_2=\frac{V_1}{R^\frac{1}{n}}$

(19)

where R =Pressure Ratio

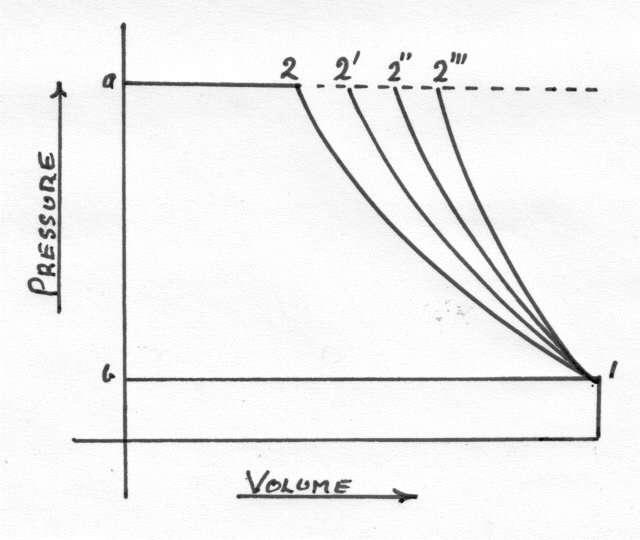

Points on the Graph;-

2 Isothermal. n = 1
2' Compression when $\gamma \geq n\geq 1$
2'' $n\;=\;\gamma$ - Adiabatic Reversible.
2''' $n\geq \gamma$

For Reciprocating Compressors:-:

The efficiency referred to is the Isothermal case since fairly successful cooling can be achieved.

$\text{Isothermal}\;\eta =\frac{\text{Work Input with Isothermal Compression}}{\text{Work Input required with actual index n}}$

(20)

For Rotary Compressors::

The Cooling is very difficult and Ineces of less than $\gamma$ are never achieved. It is therefore normal to compare the Performance with the Adiabatic reversible case.

$\text{Adiabatic} \eta =\frac{\text{Work Input with Adiabatic Reversible Compression}}{\text{Work Input required with actual index n}}$

(21)

The Overall Isothermal Efficiency Of The Plant:-

$\text{Transmission Efficiency} \eta_T=\frac{\text{Work In put at Compressor Drive}}{\text{BHP of Motor Supplying Power}}$

(22)

$\text{Mechanical} \eta_M \text{of Compression} = \frac{\text{Work Done on Air in Cylinder}}{\text{Work In put at Compressor Drive}}$

(23)

$\text{Overall Mechanical}\eta =\eta _T\;-\;\eta _m$

(24)

$\text{Overall isothermal}\eta =\frac{\text{Work Done on Air in Cylinder with isothermal Compression}}{\text{BHP of Motor}}$

(25)

$=\text{Overall mechanical} \eta \times \text{The Isothermal} \eta \text{of compression}$

(26)

The Cooling Of Compressors.

It is usually considered that the heat is given up during the Compression:-

For a Polytropic Compression.

$\text{Heat Rejected} =\left(\frac{\gamma -n}{\gamma -1} \right)\times \left(\text{Work done on Air during the compression stroke}\right)$

(27)

For an Isothermal Compression.

$\text{Heat Rejected} = \text{Work done on Air}= P_1V_1\;Ln\;\frac{P_2}{P_1}$

(28)

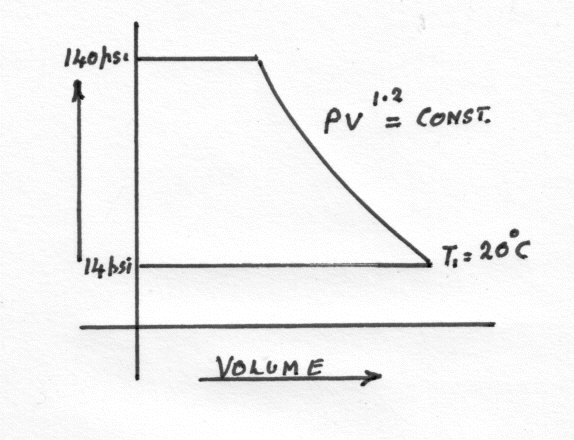

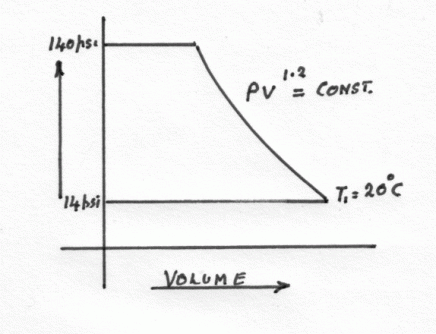

Example 1:

An Air Compressor takes in Air at 14 psi and at 20 degrees C. It is compressed in accord to the law $P\;V^{1.2}=Constant$ and delivers it to receiver at 140psi.

Find the Temperature at the end of the Compression and Calculate per pound of Air, the Compressor Work input and the heat rejected during Compression.
