Energy stored in a magnetic field, also considering the case of no magnetic saturation

View versions (1)

If we are to neglect the resistance of the circuit wire, then there would be no energy loss in maintaining a magnetic field. However, energy is required to establish the field, and it can then be recovered when the field is destroyed.

For a toroid, the induced voltage $e$ at any instant is:

$e = N \frac{d\Phi}{dt}$

(4)

where $N$ is the number of turns, and $\Phi$ the magnetic flux.

If the current at any instant is $i$ , then the instantaneous power ( $Watts$ ) is:

$P = e \cdot i$

(5)

The energy ( $Joules$ ) released from the coil in a time $dt$ is:

$E = e \cdot i \cdot dt$

(6)

or, by considering (#1):

$E = N \cdot i \cdot d\Phi$

(7)

The total energy stored in the coil then becomes:

$E_{stored} = \int_0^{\Phi_{Max}} N \cdot i \cdot d\Phi$

(8)

In order to further define the energy stored in a magnetic field, consider a magnetic circuit of length $l$ and cross-sectional area $A$ , as diagramed in Figure 1.

Figure 1

We know that the magnetic flux density $B$ can be defined as:

$B = \frac{\Phi}{A}$

(9)

which leads to:

$\Phi = B \cdot A$

(10)

from which:

$d\Phi = A \cdot dB$

(11)

Taking into account equations (#8) and (#5), we obtain the energy stored in the magnetic circuit:

$E_{stored} = \int N \cdot i \cdot A \cdot dB$

(12)

which can also be written as:

$E_{stored} = \int \frac{N \cdot i}{l} \cdot A \cdot l \cdot dB$

(13)

We know that if the magnetic field strength $H$ is uniform, then:

$H = \frac{N i}{l}$

(14)

Taking into account (#11), equation (#10) becomes:

$E_{stored} = V \int H dB$

(15)

where $V$ ( $=A l$ ) is the volume. Although this equation was proved for a toroid, it can in fact be demonstrated for all magnetic circuits.

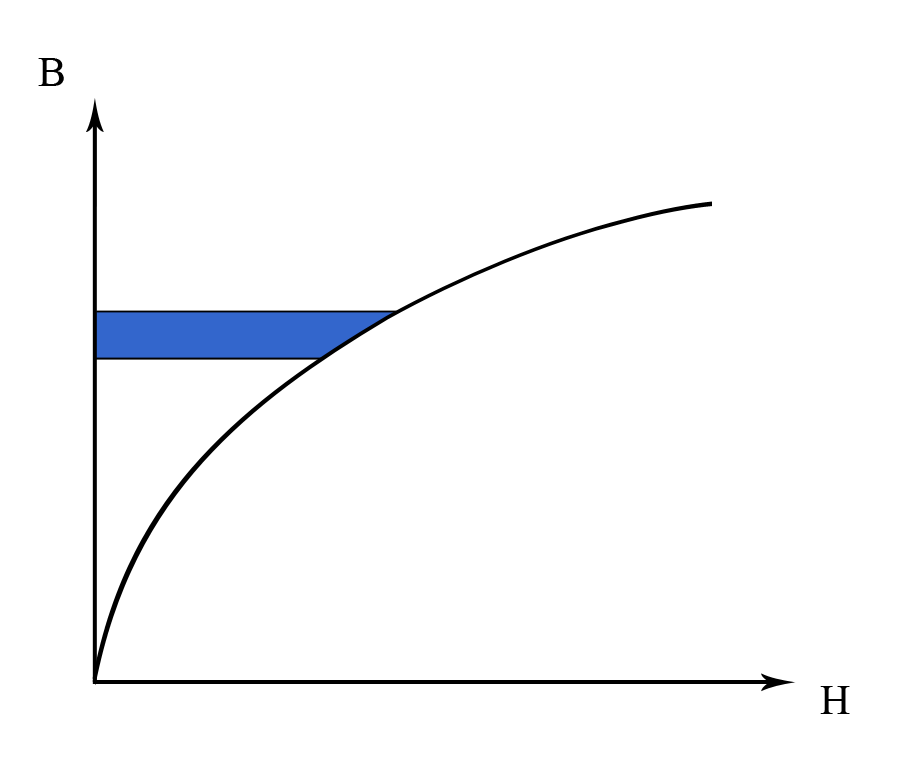

For a $BH$ curve as the one diagramed in Figure 2, $\int H dB$ is the blue shaded area:

Figure 2

It can be noted that, if there is no magnetic saturation (i.e. the $BH$ curve is straight), then:

$\int H dB = \frac{1}{2} H B$

(16)

We also know that the magnetic field strength $H$ is related to the magnetic flux density $B$ with the equation:

$B = \mu_0 \mu_r H$

(17)

or:

$H = \frac{B}{\mu_0 \mu_r}$

(18)

\calc{V*(B^2/(8*π*10^(-7)*mu_r))} "Instant calculator eq(16)"

where $\mu_0$ is the magnetic permeability of free space, and $\mu_r$ the relative magnetic permeability.

Taking into account equations (#15), (#13), and (#12), the energy stored in this particular case becomes:

$E_{stored} = V \frac{B^2}{2 \mu_0 \mu_r}$

(19)
