Stresses and Strains in loaded Circular Plates and Rings

viewed 2782 times


+View version details
Contents -

Circular Plates Symmetrically Loaded.

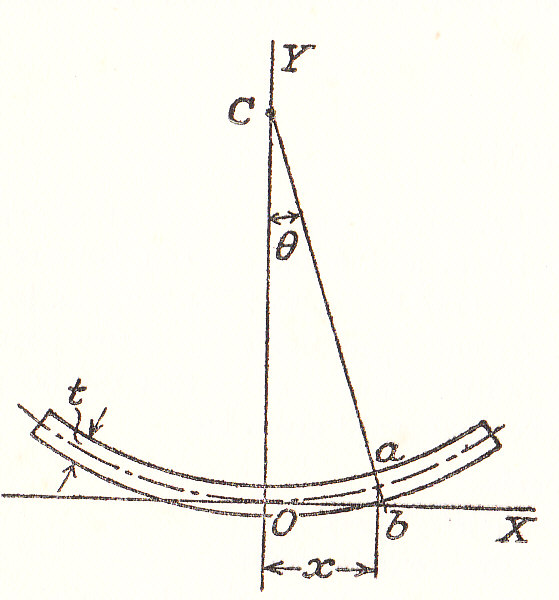

Consider a Diametral Section through a plate of thickness t. O is the centre of the plate and OX and OY are the principal axes in the plane of the diagram. The axis OZ is perpendicular to the screen.

13108/img_cir_1_0001.jpg
+

Let C be the Centre of Curvature of a section ab at a distance x from O . Then is the deflection y is small:-

The radius of curvature in the plane XOY is given by:

Thus from equation (1)

Note that, on a circle of radius x and centre O, lines such as ab form part of a cone with C as the apex. Hence C is the Centre of Curvature in the plane YOZ and:

If u is the distance of any "fibre" from the neutral axis ( Which is assumed to be central) then proceeding as for "Pure Bending" in the planes XOY and YOZ the linear Strains are:

and

Where f_x and f_y are the Stresses in the directions OX and OZ. f_y is zero

Solving equations (5) and (6) for the Stresses and incorporating equations (3) and (4) gives:

The Bending Moment per unit length along OZ is \displaystyle M_{xy} which is given by:-

By substitution from equation (7)

Similarly if M_{yz} is the Bending Moment per unit length about OX then

Using equation (8)

Note that:

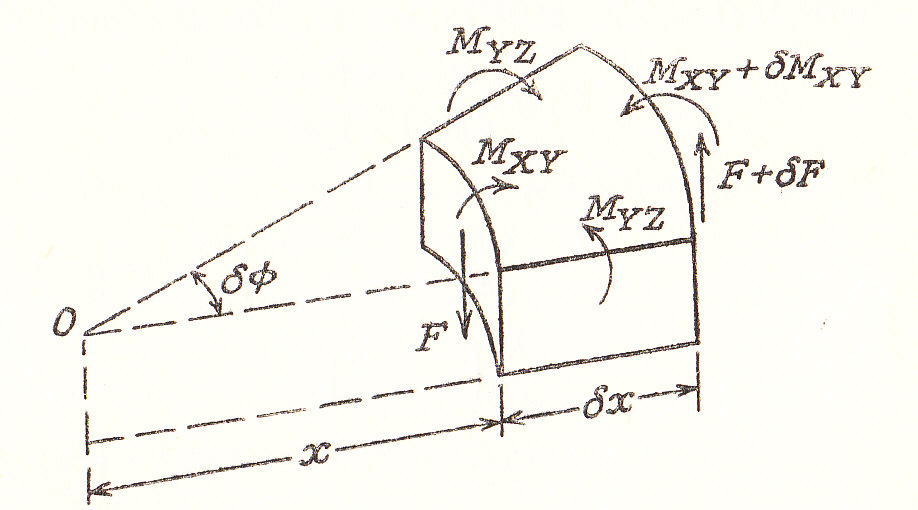

The diagram shows the Forces and Moments per unit length acting on an element which subtends an angle \delta \phi at the centre. F is the Shearing Force per unit length in the direction of OZ

13108/img_cir_1_0002.jpg
+

Now consider the equilibrium of the Couples in the Central Radial Plane.

Which in the Limit reduces to:

substituting from Equations (10) and (13) gives:

This can be written as:

If F is known as a function of x, this equation can be integrated to determine \theta and hence y. Bending Moments and Stresses can then be calculated.
Example 1:
A particular cases will now be considered: A Plate Loaded with Uniformly distributed load of w per unit Area and a Concentrated load at Centre of P.

Per unit length of circumferentially (Except at x = 0)

Substituting in Equation (19) and Integrating:-

But From Equation (1)

Solid Circular Plate

Let the radius of the plate be R and the thickness t
Uniformly Loaded, Edge Freely Supported:
P=0 and since \theta and y can not be infinite at the centre then C_2=0 from Equation (22) at x = 0, y = 0 and therefore C_3=0 from equation(24).

Using equations (10) and (22). At x=R, M_{xy}=0 therefore Thus Thus

Eliminating D by substitution from Equation (11)

From Equation (7)

And at x=0

From Equation (8)

As above when x=0, f_z=\hat{f_z}. Therefore \hat{f_x}=\hat{f_z}

Note: the Maximum Stresses occur at the centre.
Uniformly Loaded With The Edge Clamped:
As in the last case P=0 and C_2=0 at x=0, y=0. Therefore C_3=0 from equation(24) At x=R,

i.e. from Equation (22)

Using Equation (24):

Eliminating D by using equation (11)

from Equation (7)

This Stress has its greatest numerical value when x = R ( i.e. at the clamped edge), thus

From Equation (8)

From which
Central Load P, Edge Freely Supported (w=0):
At x=0, \theta=0 therefore from equation(22) C_2=0 and y=0. From equation(24) C_3=0

Note: (L\times t\times (x\;\ln x)=0)

At x=R, M_{xy}=0 do from equation(10)

From which Thus

From Equation (7) Note u=\frac{t}{2}

And from equation (8)

These Stresses appear to become infinite at the centre but it must be realised that the load can not be applied at a point but must extend over a finite area. If this area can be estimated then the maximum Stresses can be obtained.

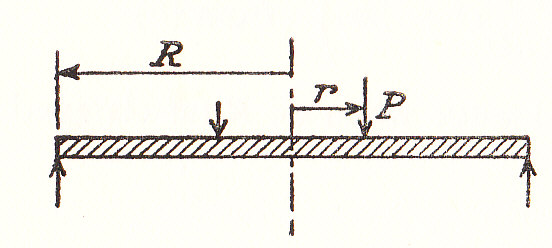

Loaded Round A Circle, Edge Freely Supported:
Let a total load P be distributed around a circle of radius r:
13108/img_0001_1.jpg
+

It is necessary to divide the plate into two regions, one for x < r and the other for x > r. At x = r the values of \theta, y and M_{xy} must be the same for both regions.

If x<r, w=0 and P=0

Hence from Equation (22) And from Equation (24)

Since \theta and y are not infinite at x=0 then C_2=0 and since y=0 when x=0 and C_3=0 then above equations reduce to: And

If x>r and w=0 From Equation (22)

And from Equation (24)

Equating the values of \theta and M_{xy} at x=r gives the following equations:

And

M_{xy}=0 at x=R gives:

From Equations (59) to (63) the constants are found to be:

The Central Deflection is given by the value of y at x = R and by substitution equation (24) reduces to:-

For x>r

Which has a maximum value at x = r

Hence from equation (14)

Similarly:

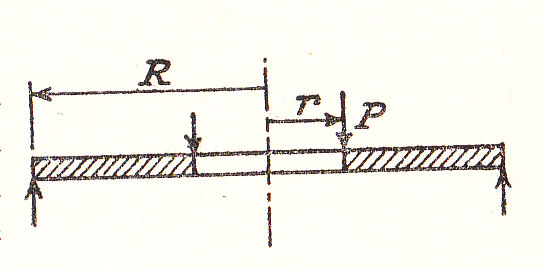

Annular Ring , Loaded Around The Inner Edge

13108/img_cir_1_0004.jpg
+

The ring is loaded with a total load P around the inner edge and is freely supported around the outer edge. M_{xy}=0 at x=R and at x=r.

And

Subtracting and solving: And then

Then,

The maximum Bending Moment is M_{yz} at x=r, therefore
